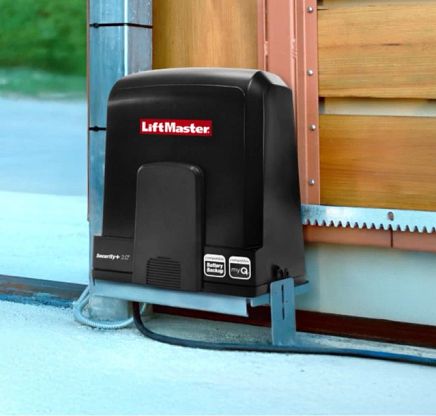

24 VDC Residential Rack & Pinion Drive Slide Gate Operator
SL1000ULC
Are you a LiftMaster Partner? Login to Purchase.
- Max gate weight : 1000 kg / 2205 lbs Max gate travel distance : 12m / 39 ft

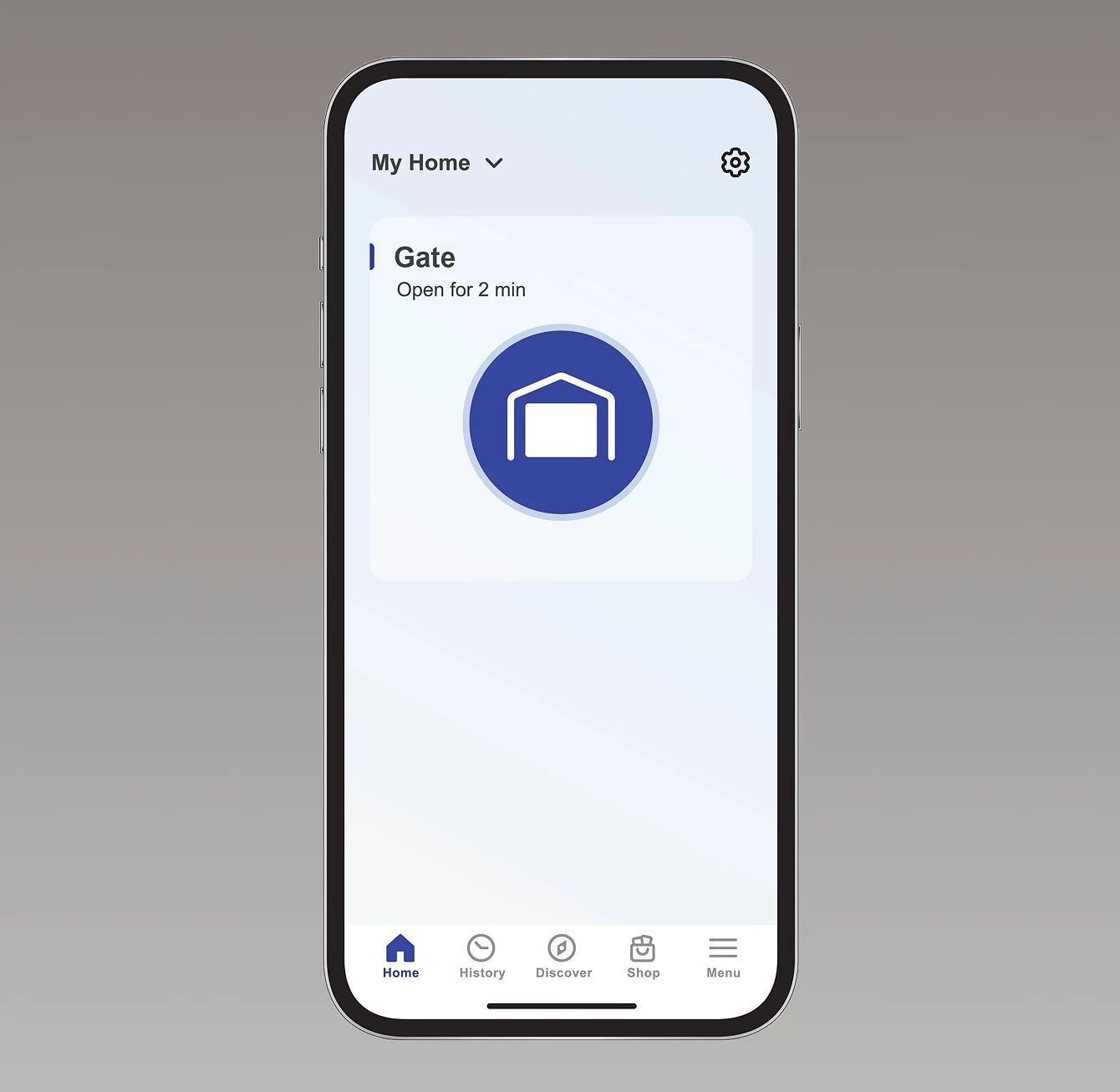

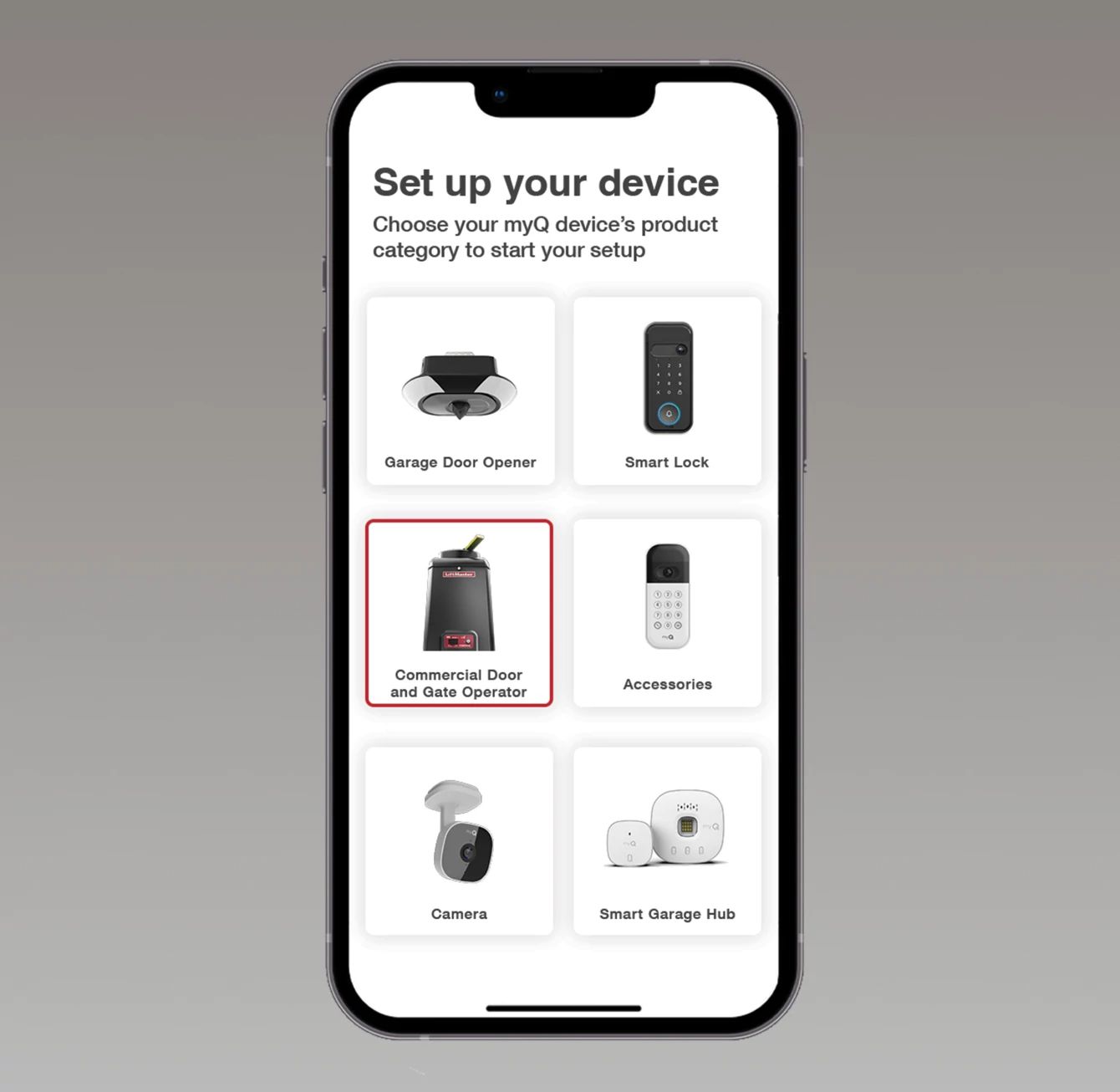

- Powered by myQ: Monitor and control your gate remotely through the myQ app. Requires internet connection and optional LiftMaster 828LM gateway device.
- Security+ 2.0: Safeguards facility access with rolling code technology, opening for registered devices only
- Entrapment Protection: Built-in inherent obstruction detection and reversing system is complemented by two monitored entrapment protection devices (photoeye and/or resistive edge).
- Smooth Start/Stop Operation: 24 VDC motor provides adjustable soft start/stop for smooth quiet, operation, prolongs motor life.
- Manual Disconnect and Reset Button: Security key protected, allows manual open/close of gate in case of power loss. Includes reset button allowing stopping gate motion and other functions.

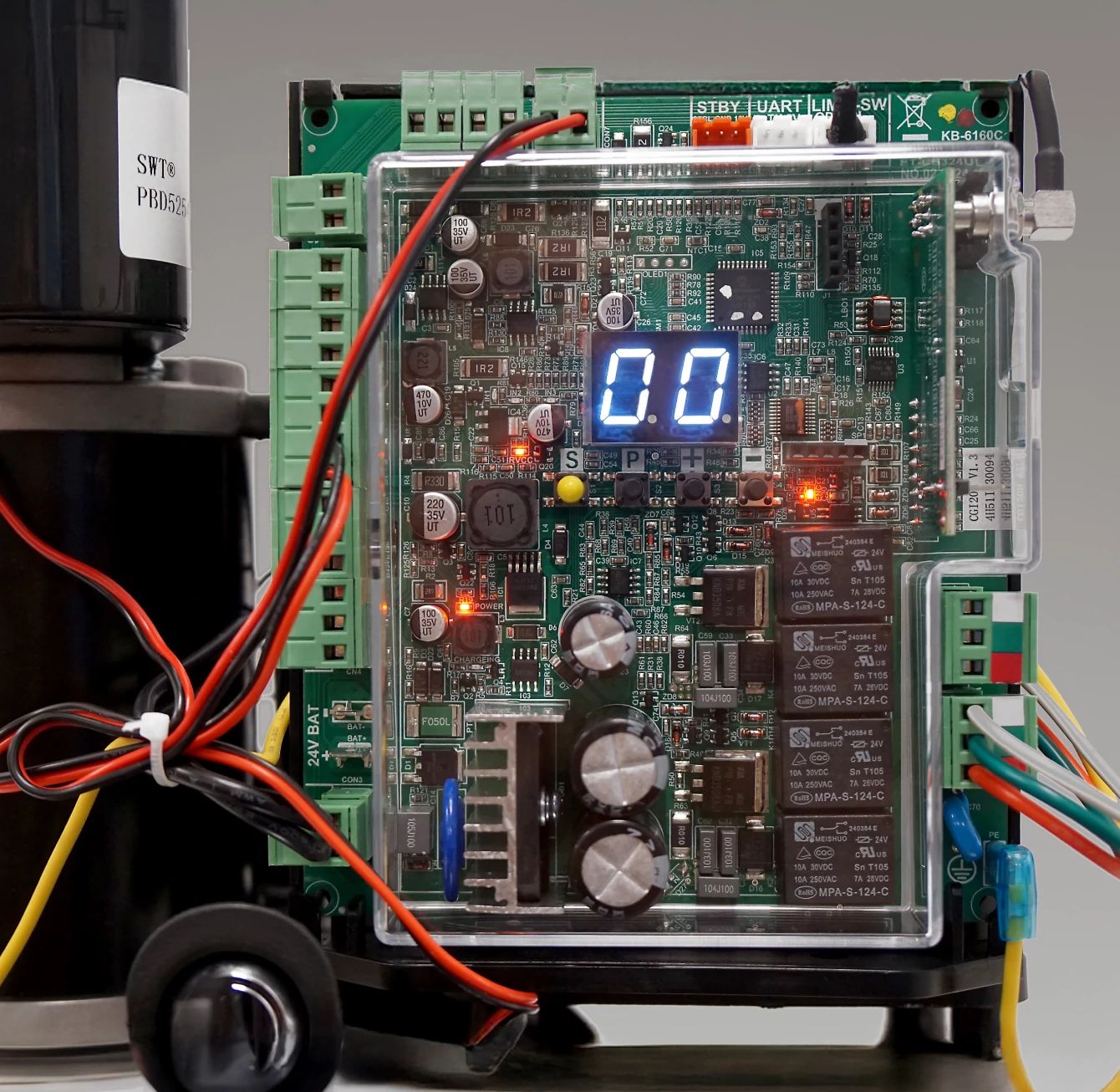

- LED Diagnostic Display: Simplifies installation, programming and troubleshooting.
- Electronic Programming: Enables fine tuning of operator settings and precision adjustments to motor force, speed and travel limits.

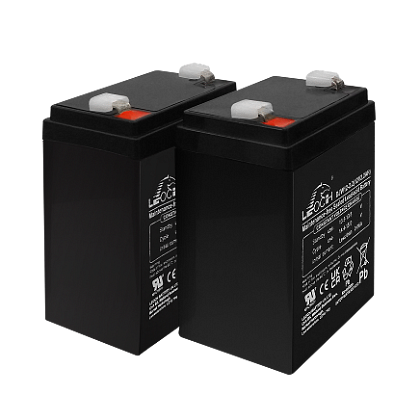

- Battery Backup: optional 490EVUL backup battery accessory kit (2 x 12V, 2.2Ah lead batteries) fits inside operator compartment.
MAXUM Commercial Door Operators Have Arrived
Always Connected to Your Home or Business.

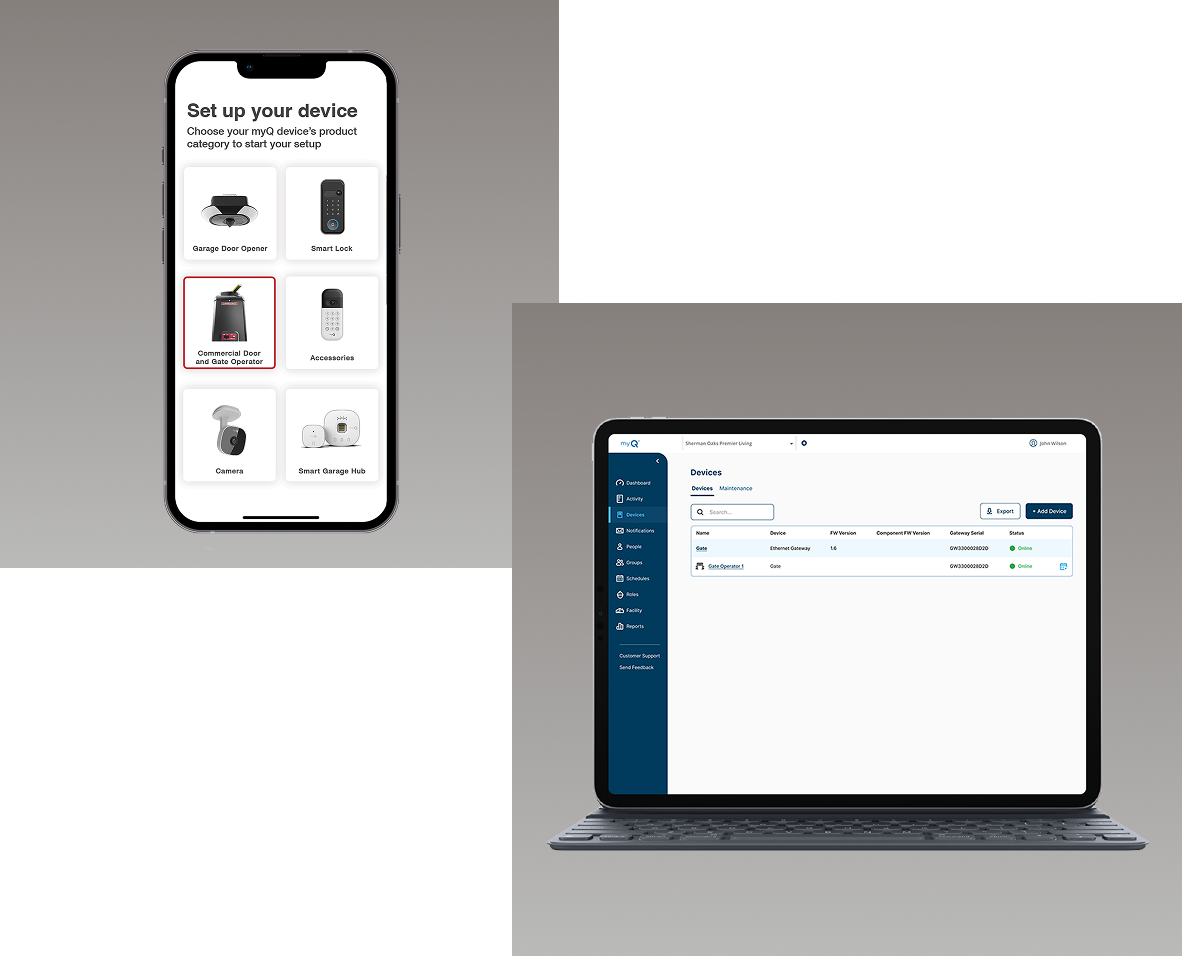

With myQ connectivity LiftMaster gate operators, commercial door operators and garage door openers can be controlled from your smartphone.
Standalone or Integrated Control

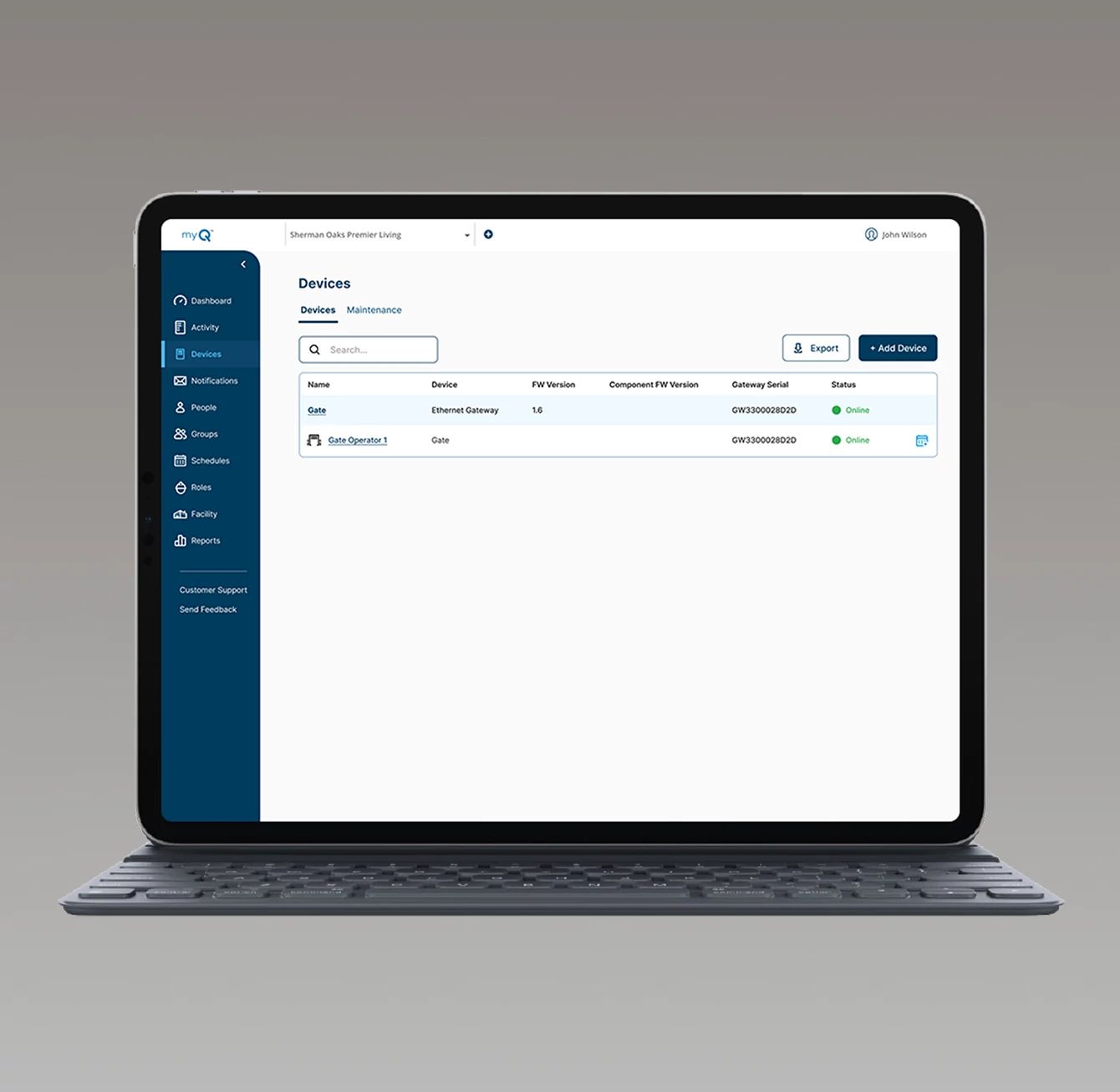

Connect to myQ Facility allowing you to see and control what is happening at your facility’s commercial doors from anywhere.
Specifications
Operating Temperature
20°C to 55°C (-4°F to 131°F)
myQ Compatibility
Works with the myQ app. Requires internet connection and optional LiftMaster 828LM gateway device.
Power
120Vac; 2A; 60Hz Operating voltage: 24 VDC transformer run
Battery Backup
Optional 2 x 12V 2.2Ah batteries
Motor Type
24VDC Motor Drive
Warranty
2 years
Max Gate Travel Speed
20 cm/sec (7.8 inch/sec)
UL® Listed

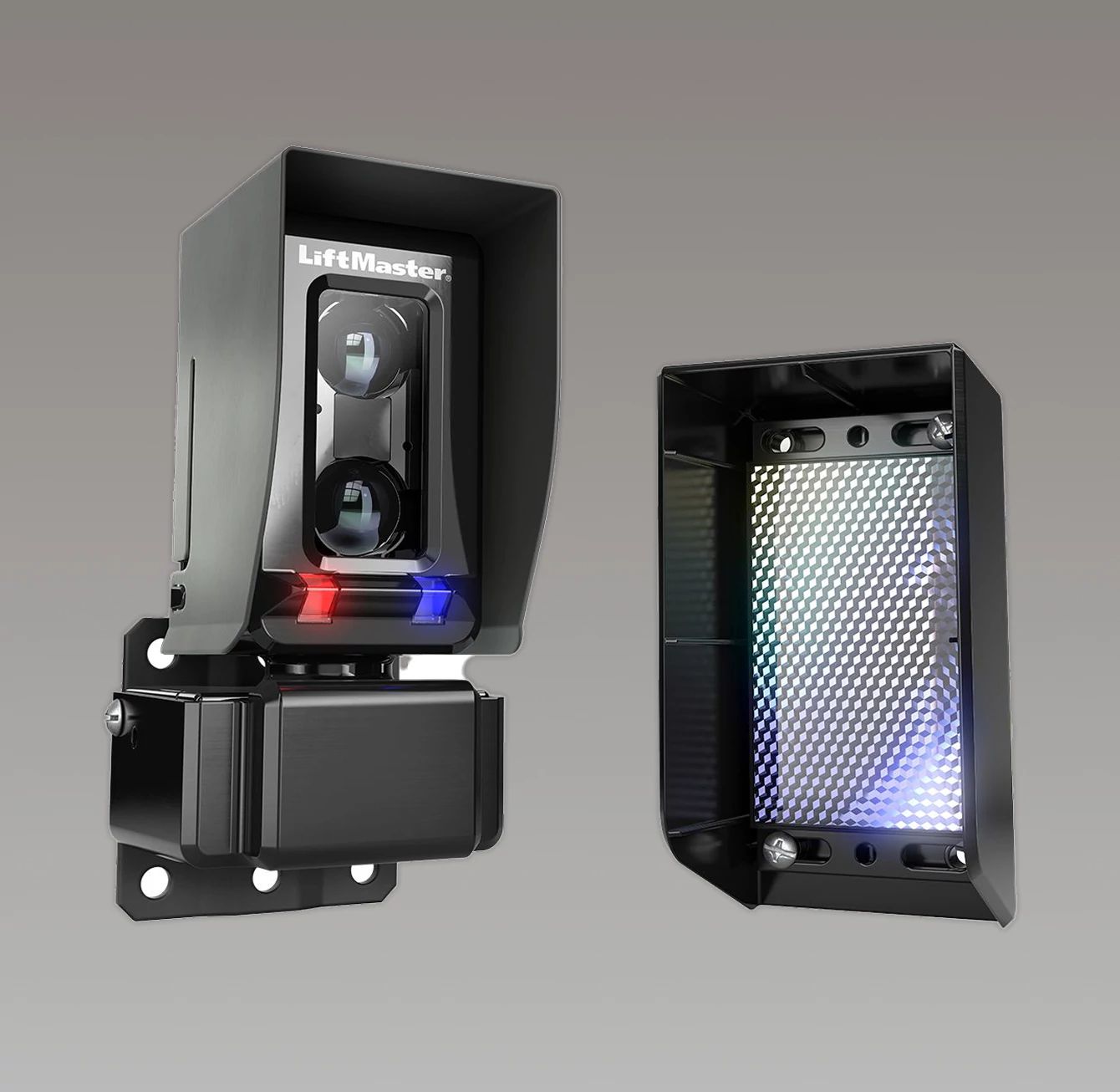

LiftMaster Gate Operators are listed to ANSI/CAN/UL325 Standard. The SL1000ULC requires 2 monitored external entrapment protection devices – see accessories.
Commercial Grade Design
Usage Classification: Class I, II and III. ABS plastic UL Type 3R one piece enclosure, UV-resistant.
Smooth Start/Stop
Adjustable soft start/stop for smooth quiet, operation, prolongs motor life.
Onboard Receiver
LiftMaster Security+ 2.0, 180 transmitter capacity
Local Diagnostics
LED 2-digit interface provides diagnostics through displayed error codes
HomeLink® compatible*
Version 4.0 or higher
