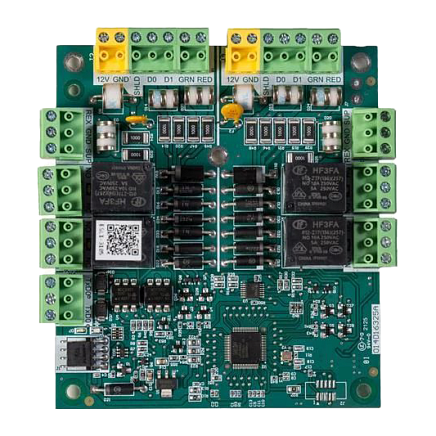

LiftMaster® Smart Access Expansion Board
CAP4EXPND
New
Are you a LiftMaster Partner? Login to Purchase.
- LiftMaster Smart Access Expansion Board (CAP4EXPND) is the expansion module for the LiftMaster Smart Access Controller Panel (CAPXAP) and its control board (CAPXAP-CNTL).
- 4 Relays – for controlling additional doors, gates, or devices
- 4 Supervised Inputs – for monitored door contacts or request-to-exit devices
- 2 Wiegand Inputs – for connecting card readers or keypads
- Serves as the service kit for the LiftMaster Smart Access Controller (CAP4AP)
Specifications
Max Number Of Gates/Doors of control (Each)
4
Wiegand Input
2
Relay Output
4
Operating Temperature
-4F to 122F (-20C to 50C)
Wiegand Output Data Format
26 credentials or passthrough
Warranty
Lifetime Motor Warranty, 2 years Parts Warranty, 2 years Hardware Warranty
