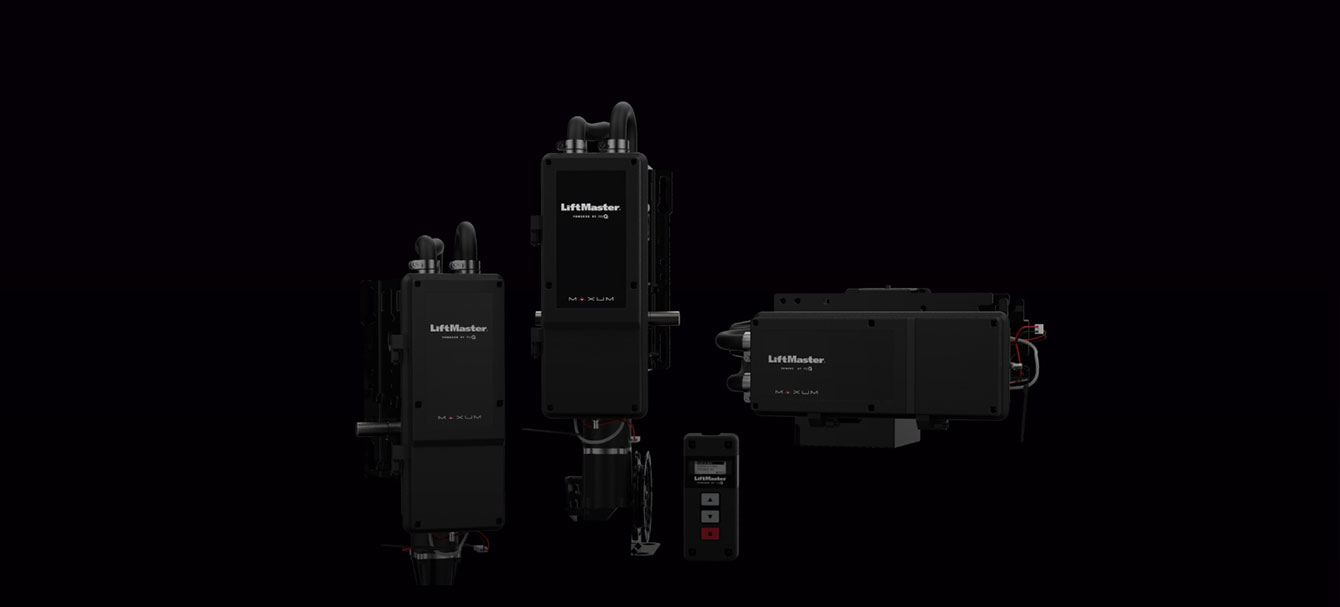

MAXUM DC Jackshaft Commercial Door Operator

JDC

  • Motor and Gearbox purpose built to meet the high demands of commercial applications.
  • 3-button control with 4-line LCD display for setup and programming from the floor level.
  • Up to 33% faster than standard commercial door operators, allowing you to get shipments in and out quickly. Average speed is 12” per second.
  • Battery Backup helps keep your door running even when the power goes out—ensuring safe and continuous operation.
  • Diagnostics at floor level through myQ® Facility on your mobile device allows you to see when there is a problem and anticipate maintenance cycles.
  • Built-in Wi-Fi® lets you easily connect to myQ Facility software, allowing you to get valuable data and insights to improve operations.
  • Security+ 2.0® virtually eliminates radio wave interference and offers extended range.
MAXUM Commercial Door Operators Have Arrived
MAXUM Commercial Door Operators Have Arrived

MAXUM Commercial Door Operators Have Arrived

12 inches per Second

Fast

At an average speed of 12” per second, the operator quickly opens doors to help your business stay efficient and profitable. Plus, the floor LCD display allows you to easily track your maintenance schedule—reducing downtime.

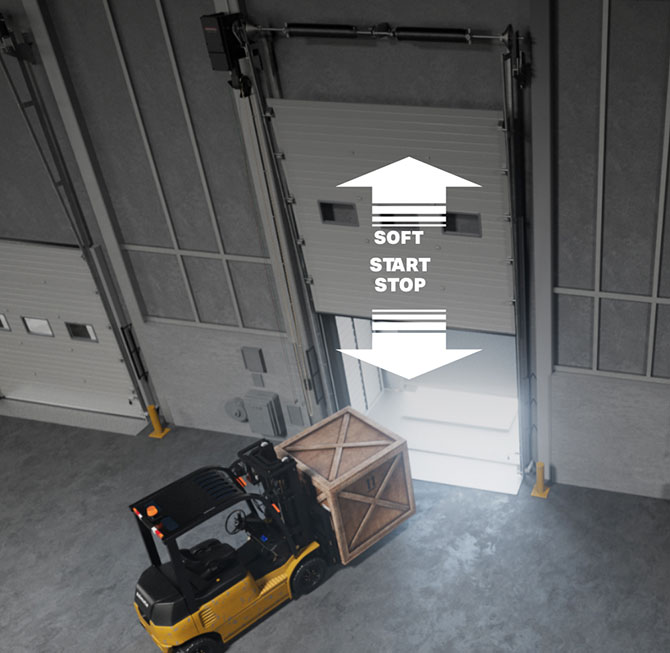

Smart

Soft-start & Soft-stop gives the operator a longer lifespan while Battery Backup ensures that it will keep running—even in a power outage. With embedded Wi-Fi connectivity out the of box, you can use myQ Facility software to access data and analytics to improve your business.

Smart
Simple

Simple

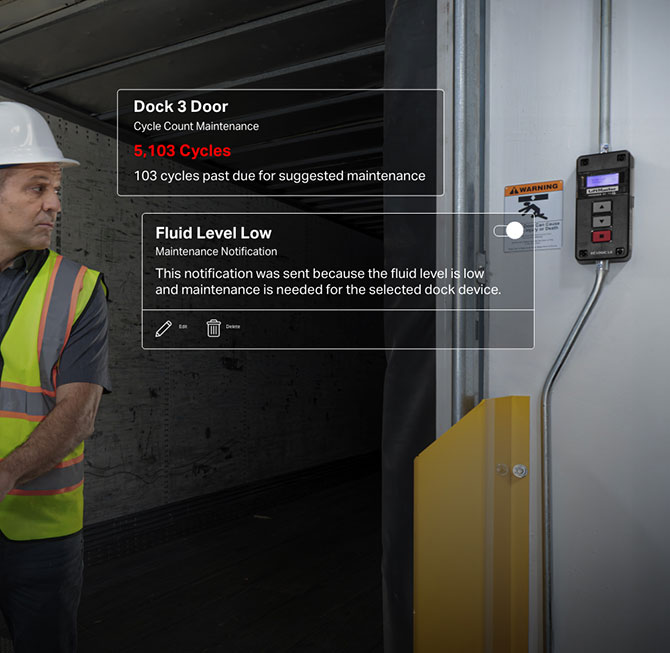

Floor-level wall control makes the operator easier to control and check for preventative maintenance. The modular design enables both right and left-side mounting with a single unit—making the operator flexible to the needs of your application.

Connectivity

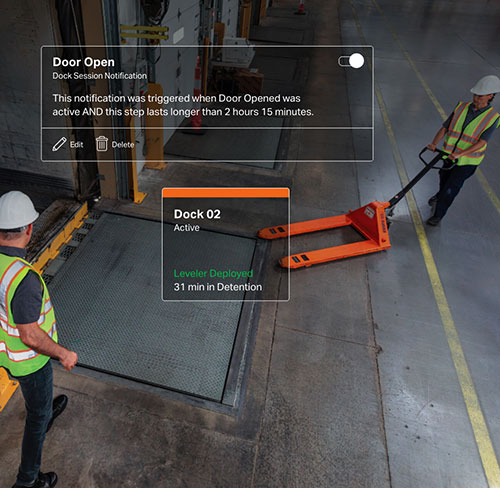

myQ Connectivity

Connect to myQ Facility allowing you to see and control what is happening at your facility’s commercial doors from anywhere.

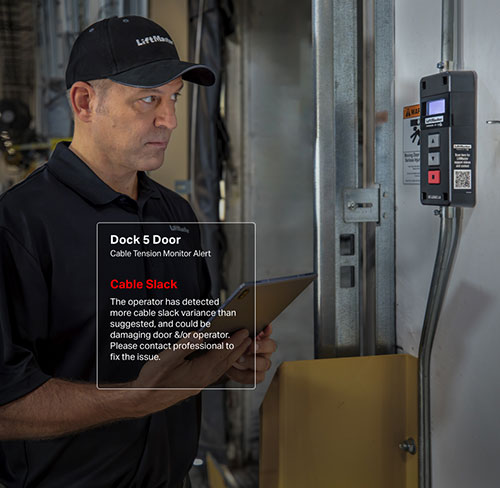

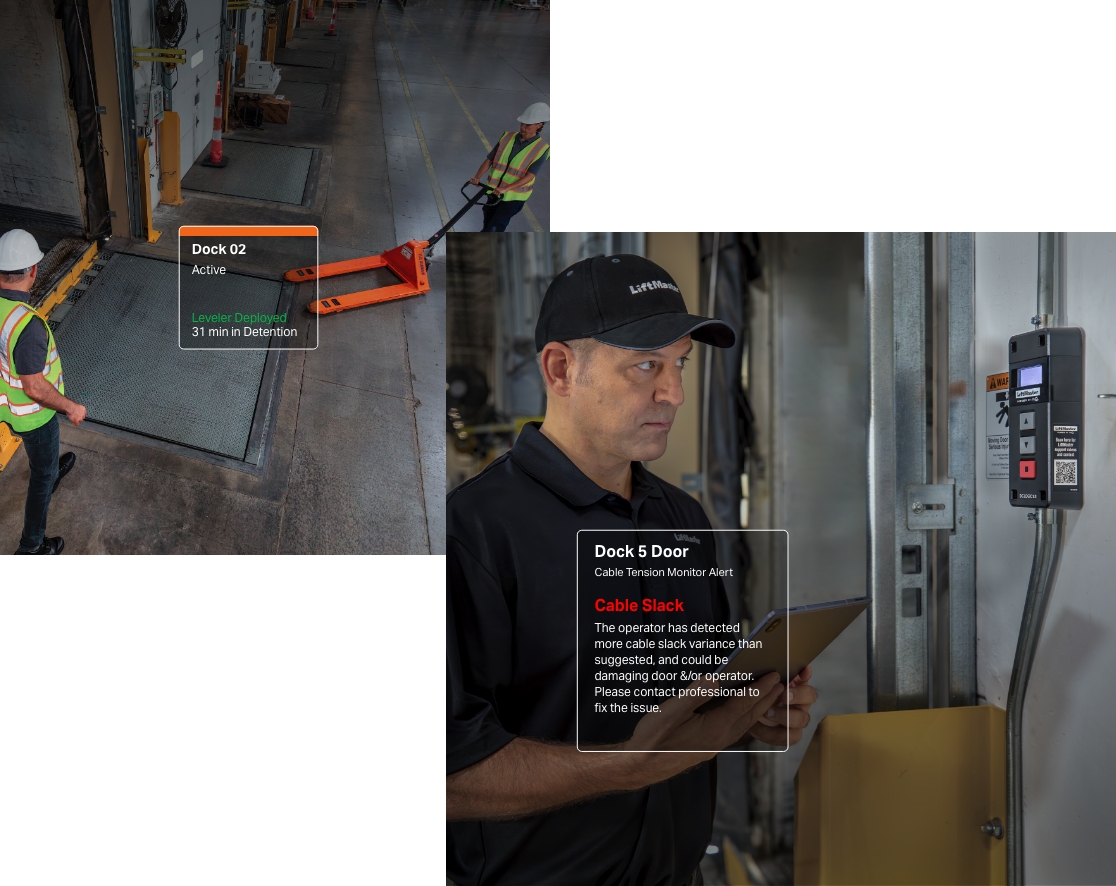

Diagnostics

With myQ Diagnostics you can know your maintenance schedule and be alerted when there is a problem to reduce time on tools and increase safety.

Specifications

Soft Start / Stop
Yes
myQ Compatibility
Works with myQ, myQ Facility, or myQ Enterprise
Power
120V/240V (1PH/3PH); 480V (3PH); 208V & 600V (3PH) available with transformer accessory
Wi-Fi
Yes
Battery Backup
Yes, with included DC45AH Battery Backup kit
Monitored Safety Inputs
3 Inputs
Duty Cycle Per Hour p/h & Per Day p/d
Standard - 20 cycles p/h /90 p/d | Extended - 30 cycles p/h /150 p/d
Speed/Per Second
Faster speed,12” on average for sectional and 8–9 inches for rolling steel doors
Radio Receiver
Security + 2.0
Motor Type
24VDC Motor Drive
Dual handing for installs
Right or left no longer required for order
Warranty
2 Years

What's included

CPS-U

CPS-U

Commercial Photo Eyes
Learn More
CPS-U

CPS-U

Commercial Photo Eyes
Learn More
