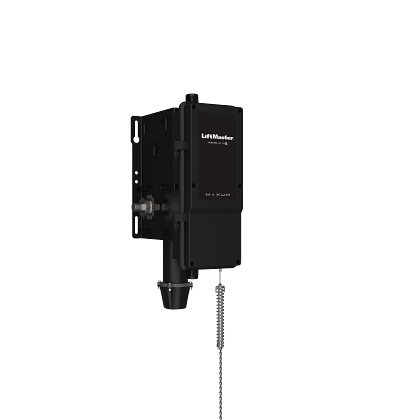

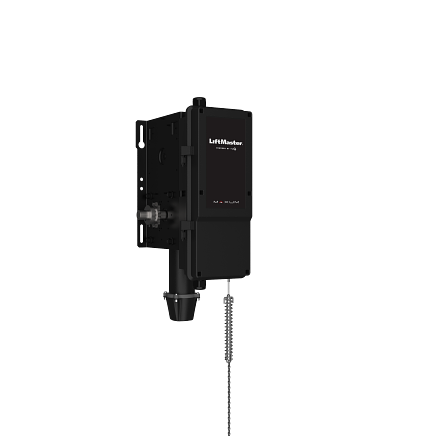

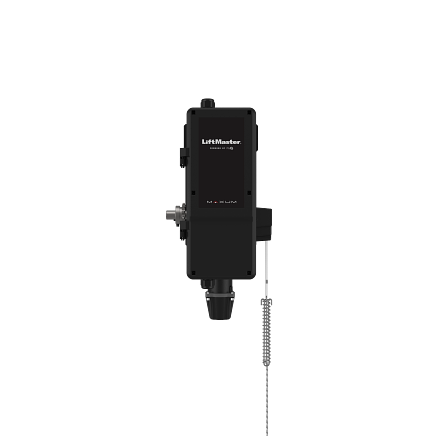

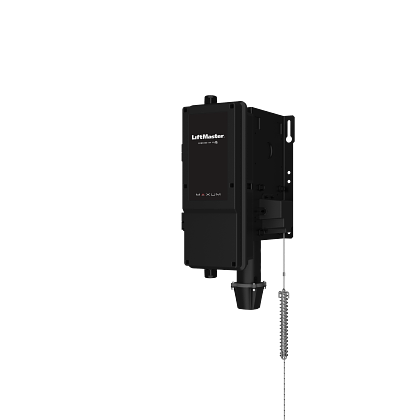

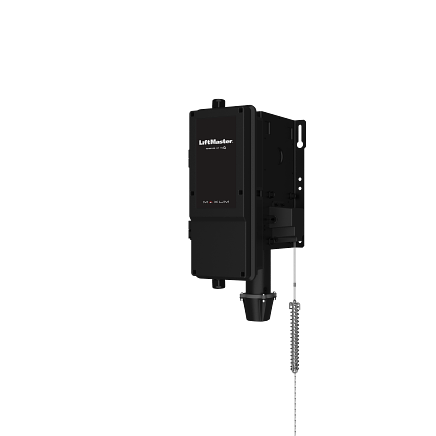

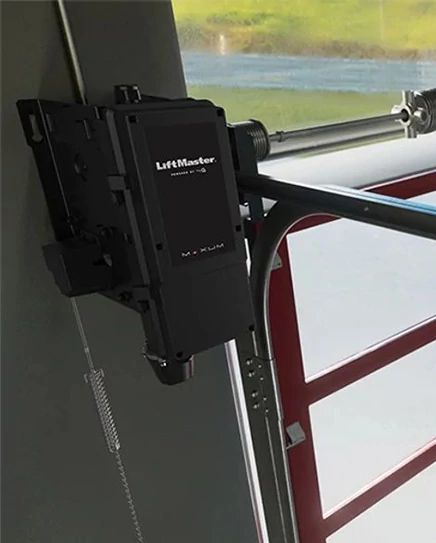

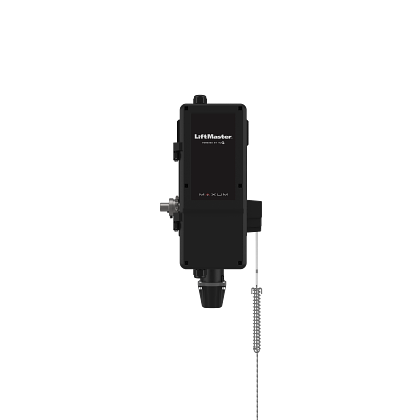

MAXUM Jackshaft with Manual Release DC Commercial Operator
RJDC
New
Highly Rated
Are you a LiftMaster Partner? Login to Purchase.
- Included manual-release sash chain enables quick disconnection of the operator from the door.
- Motor and Gearbox purpose built to meet the high demands of commercial applications.
- 3-button control with 4-line LCD display for setup and programming from the floor level.
- Up to 33% faster than standard commercial door operators, allowing you to get shipments in and out quickly. Average speed is 12” per second.
- Diagnostics at floor level through myQ® Facility on your mobile device allows you to see when there is a problem and anticipate maintenance cycles.
- Built-in Wi-Fi® lets you easily connect to myQ Facility software, allowing you to get valuable data and insights to improve operations.
Faster. Simpler. Smarter.
Faster. Simpler. Smarter
myQ Connectivity
Connect to myQ Facility allowing you to see and control what is happening at your facility’s commercial doors from anywhere.
Diagnostics
Connect to myQ Facility allowing you to see and control what is happening at your facility’s commercial doors from anywhere.
Specifications
myQ Compatibility
Works with myQ, myQ Facility, or myQ Enterprise
Power
120V/240V (1PH/3PH); 480V (3PH); 208V & 600V (3PH) available with transformer
Wi-Fi
Yes
Battery Backup
Capable w/ accessory kit DC45AH or DC7AH
Monitored Safety Inputs
3 Inputs
Duty Cycle Per Hour p/h & Per Day p/d
Standard - 20 cycles p/h /90 p/d | Extended - 30 cycles p/h /150 p/d
Speed/Per Second
Faster speed,12” on average for sectional and 8–9 inches for rolling steel doors
Radio Receiver
Security + 2.0
Motor Type
24VDC Motor Drive
Soft Start/Stop
Yes
Dual handing for installs
Right or left no longer required for order
Warranty
Standard Duty - 2 to 5 Years, or 85,000 Cycle Extended Duty - 2 to 5 Years, or 130,000 Cycles
