MT

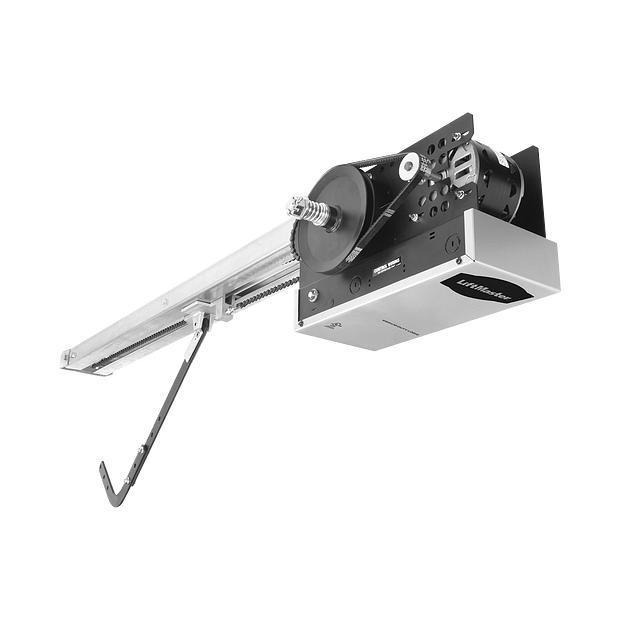

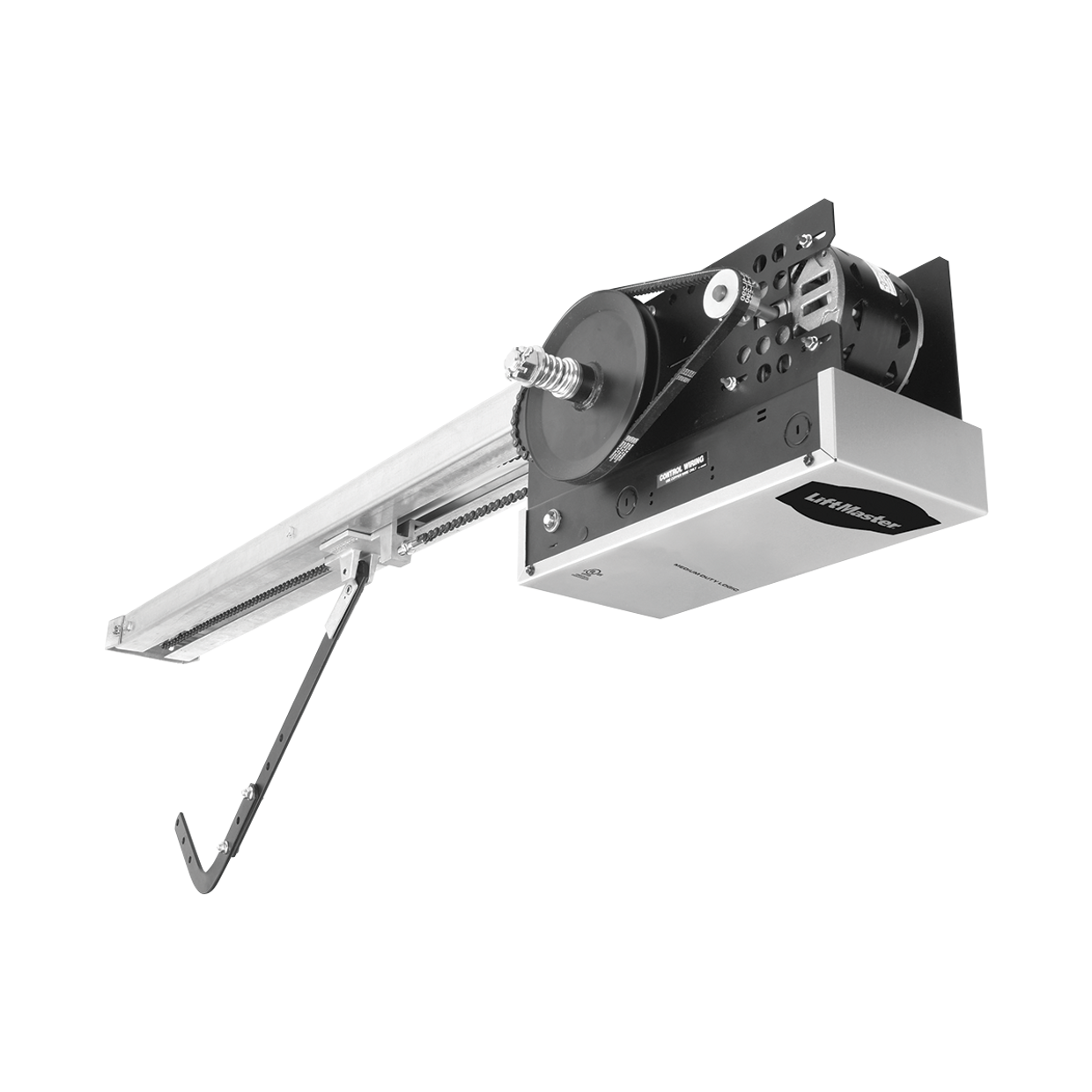

Medium-Duty Trolley Operator
- For use on standard-lift sectional overhead doors with mid-range duty-cycle requirements.
- Rated duty cycle: Maximum 12 cycles per hour; Less than 50 cycles per day.
- Suspends from ceiling directly attaches and controls a sectional door.
- Trolley with disconnect disengages operator for manual lifting in an emergency.
Features
Business Safety and Security
Safety Standards
Meets UL 325 Safety Standards.
Commercial Safety Sensors
Protect people and vehicles with safety sensors and accessories that stop the door from closing on obstructions.
Timer to Close
Integrated timer-to-close programmable from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the full open position.
Security+ 2.0®
Safeguard facility access with Security + 2.0 technology, opening for registered devices only.
Commercial Power
115 Volts
1/2 HP, 115V single-phase motor
NEC Class
24V NEC Class 2 control circuit
Commercial Accessories
Single Button Control
Single button control provides an additional input for single-button control fuctionality. Required for installation of any external radio receiver.
Auxilliary Limit Switches
Auxiliary limit switches provide additional limit switches with dry form C contacts at the open and closed door positions to control lights, heaters and dock levelers.
Interlock Switch
Interlock switch disables the operator control circuit when door is locked, preventing damage to the door and operator.
