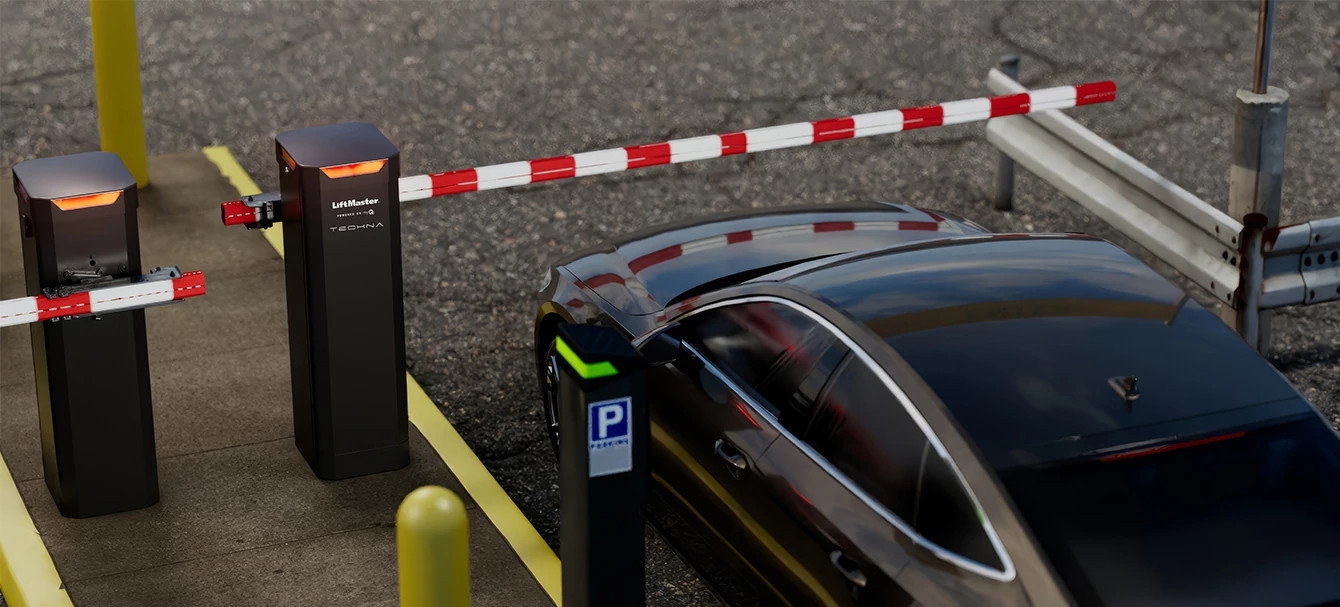

TECHNA DC Commercial Barrier Gate operator
CBG24DC
Are you a LiftMaster Partner? Login to Purchase.

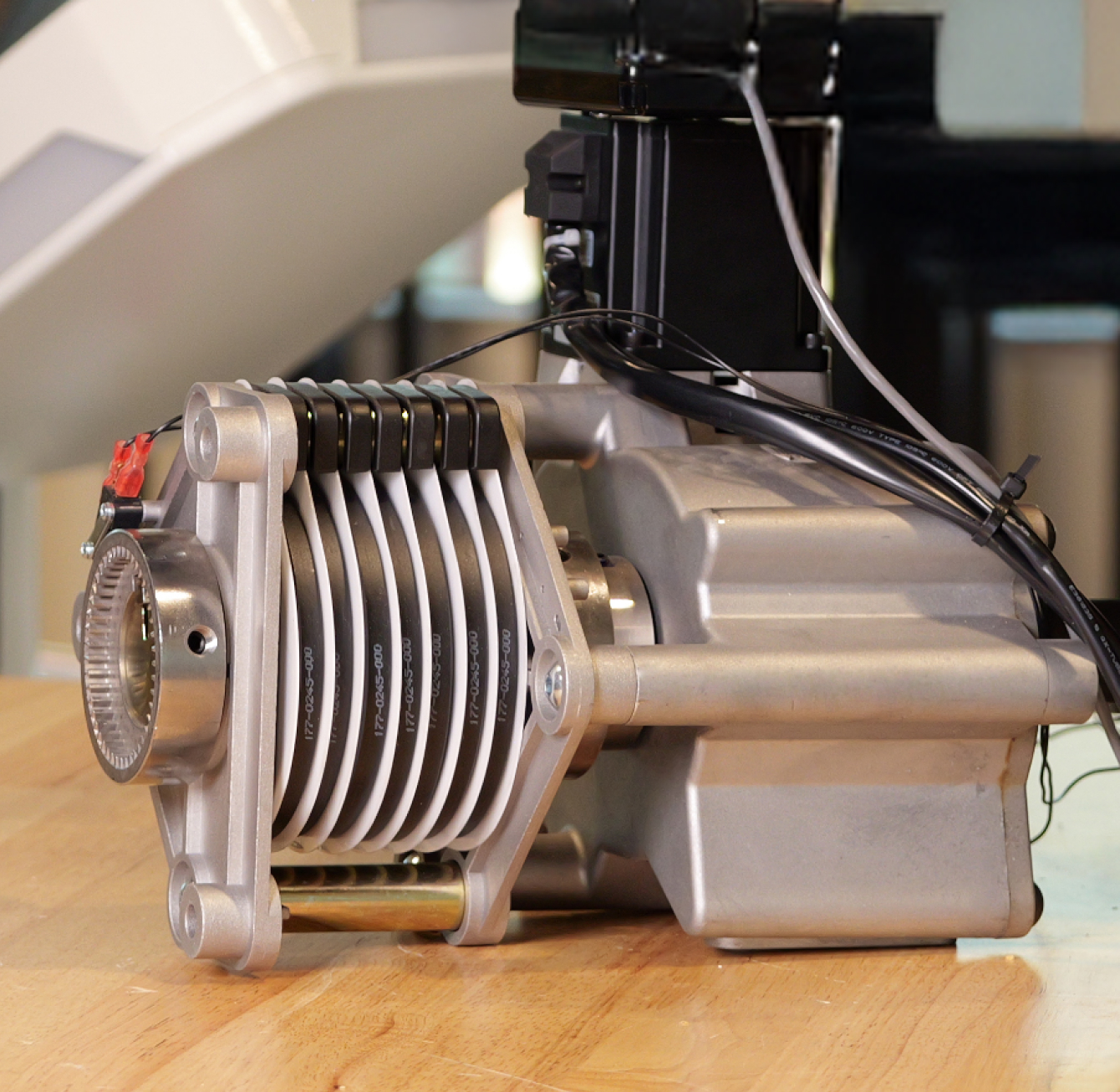

- Innovative Counterbalance System that simplifies arm direction changes.

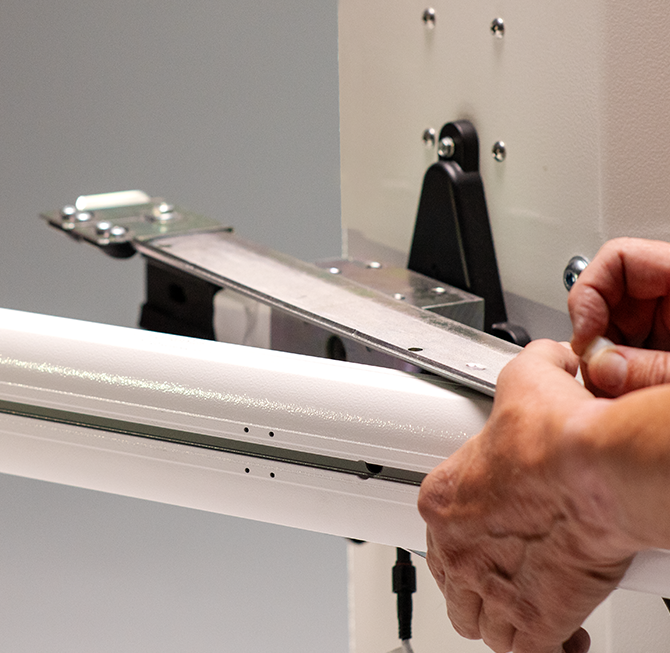

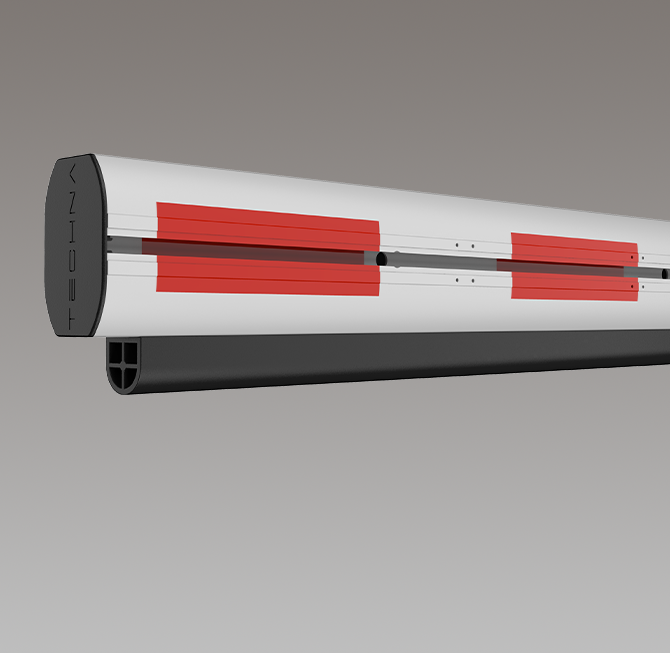

- Breakaway Arm Technology design to protects against damage from arm strikes.
- Slow Start/Stop Operation extends the life of the operator and arm durability.
- Integrated LED Tower Lights for better visibility
- High Speed Operation with a 2.5s open and close duration.

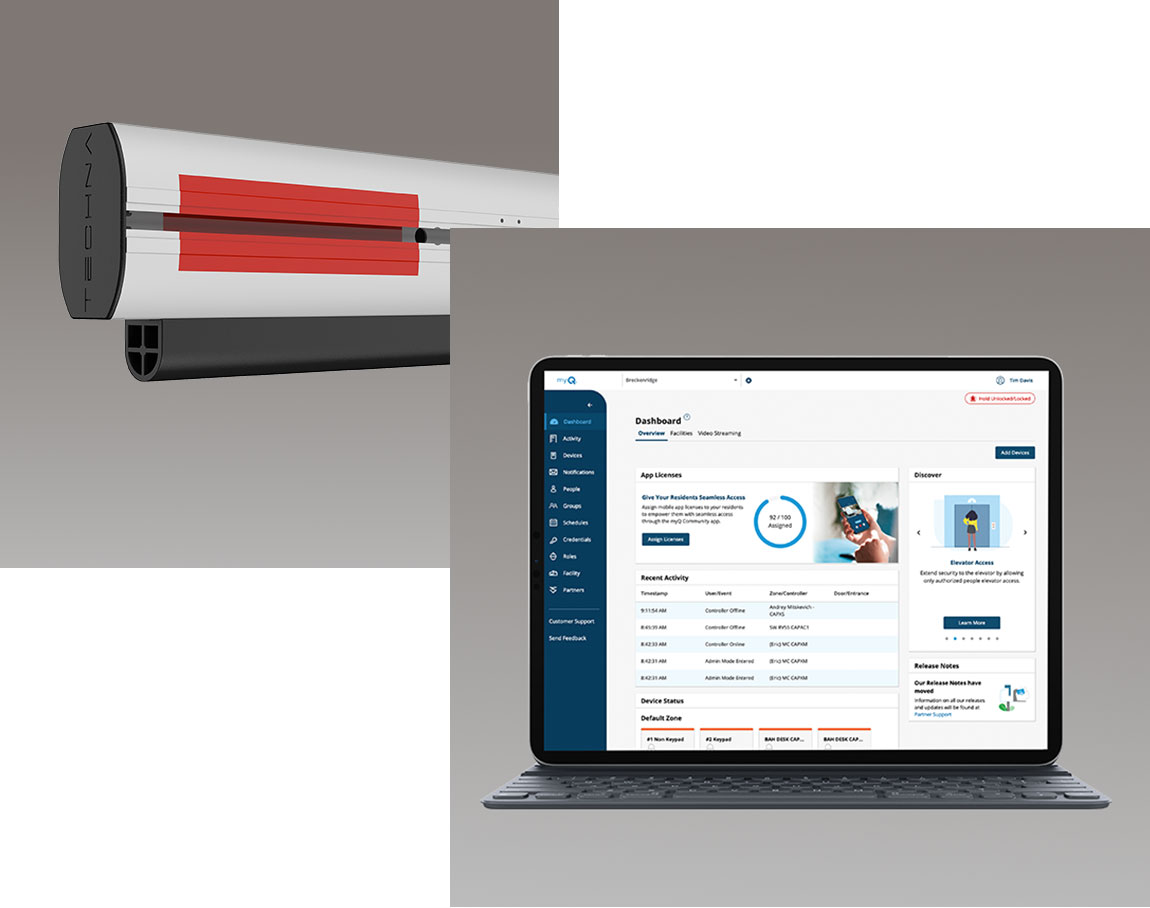

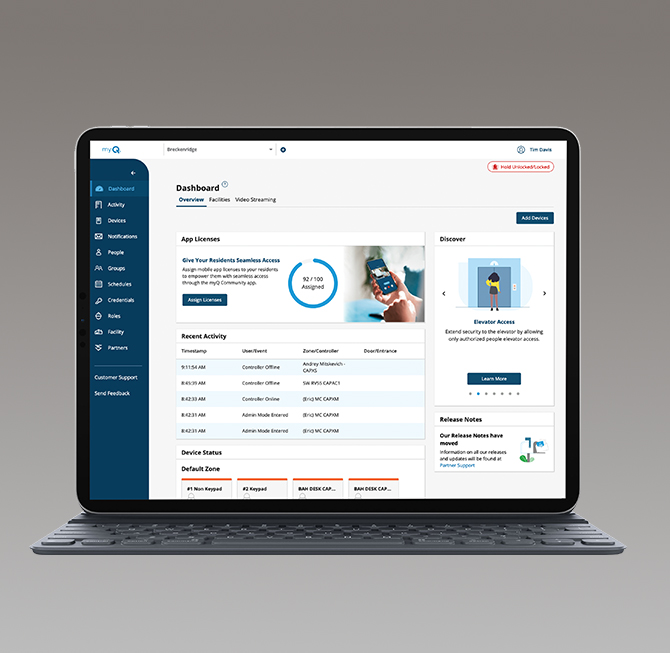

- Built-in Wi-Fi® lets you easily connect to myQ Facility software, allowing you to get valuable data and insights to improve operations.
- Security+ 2.0® virtually eliminates radio wave interference and offers extended range.
Specifications
myQ Compatibility
Works with myQ, myQ Facility, or myQ Enterprise
Power
120Vac/230 Vac 1 PH
Wi-Fi
Yes
Battery Backup
Standard 2 x 12V 7Ah batteries, Optional 2 x 12V 33Ah batteries available
Speed/Per Second
2.5s Open/Close time
Radio Receiver
LiftMaster Security+ 2.0 , 3-channel receiver up to 64 remote controls (unlimited remotes with 811MX/813MX)
Motor Type
24VDC Motor Drive
Soft Start/Stop
Yes
Warranty
2 Years
Programmable Relays

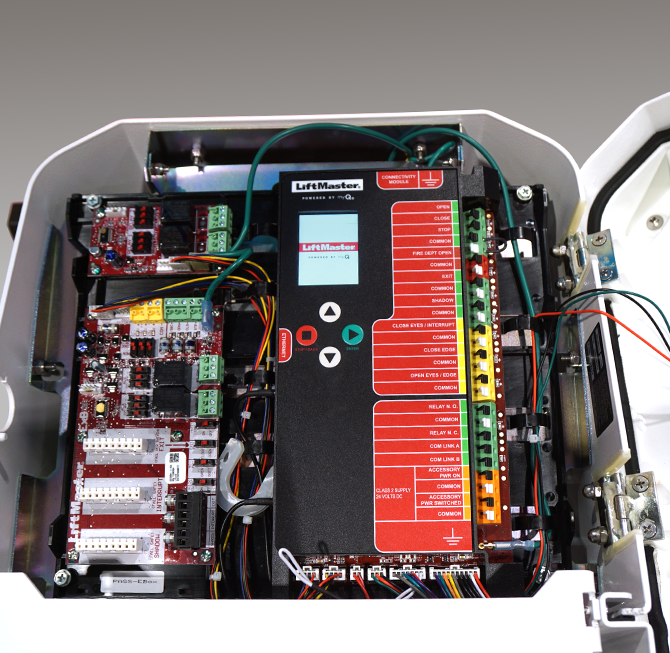

5 relays, One main board and 4 on the auxiliary boards
Local & Remote Diagnostics
Local log of 50 events correlated to cycle number, unlimited if connected to myQ Facility.
Rated Duty Cycle
Continuous Duty
