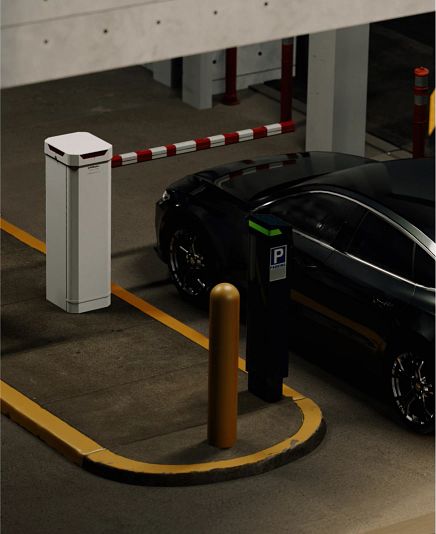

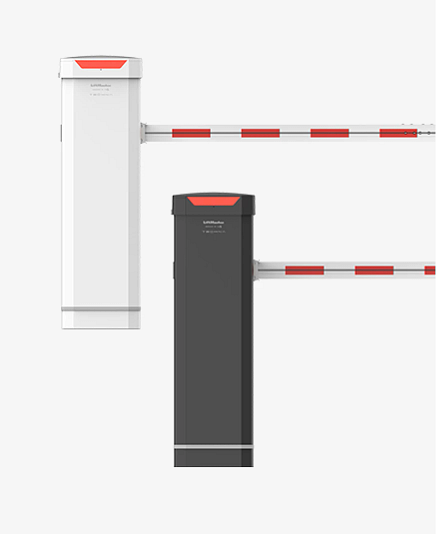

TECHNA Parking Barrier Gate Operator
PBG24DCW / PBG24DCG
Are you a LiftMaster Partner? Login to Purchase.
- Optimize Operations and Maximize Revenue: When connected to myQ software, TECHNA provides insights into traffic flow, peak hours, and vehicle vs. ticket transactions, for data-driven decisions.

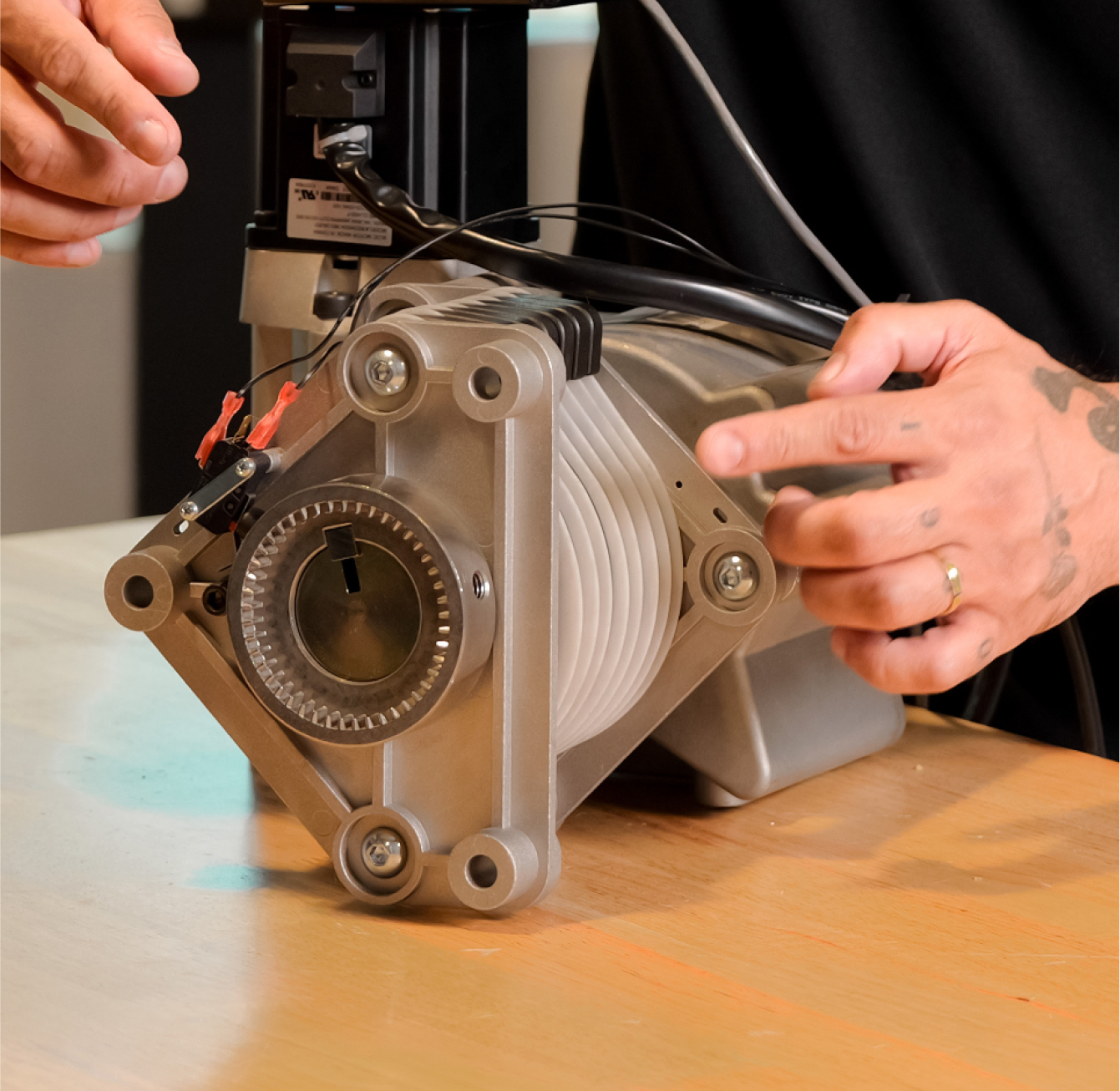

- Complete Peace of Mind: With a standard battery backup, brushless DC motor, and a direct-drive transmission designed to last up to 10M cycles, TECHNA's durability ensures reliability.

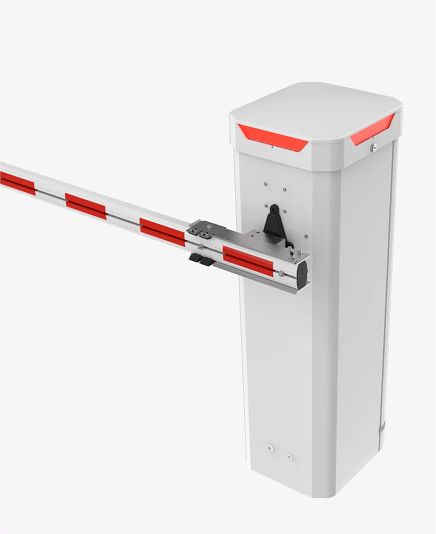

- Flexible Arm Bracket: Standard break-a-way or swing-a-way attachments minimize damage from arm strikes.

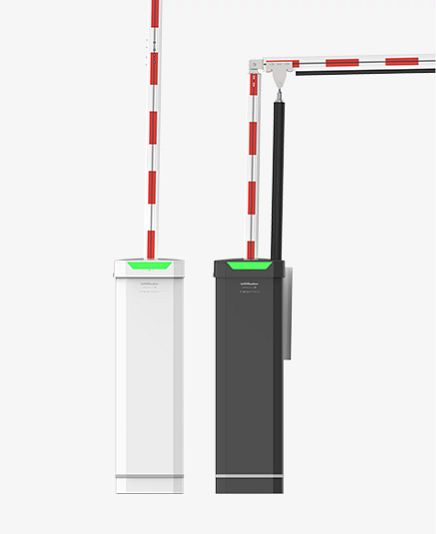

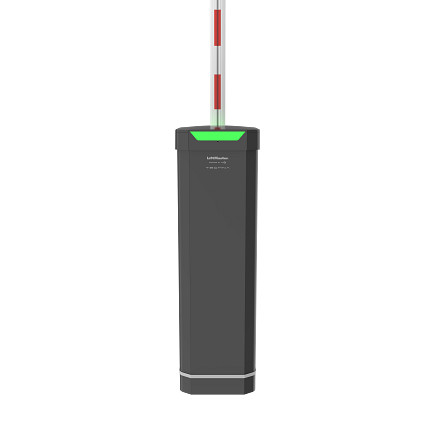

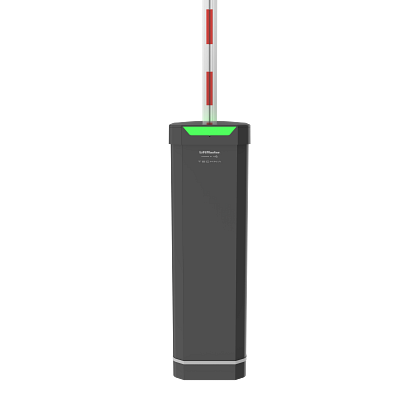

- Highly Visible Design: Programmable red/green LEDs on tower and arm increase visibility, reducing accidental strikes.

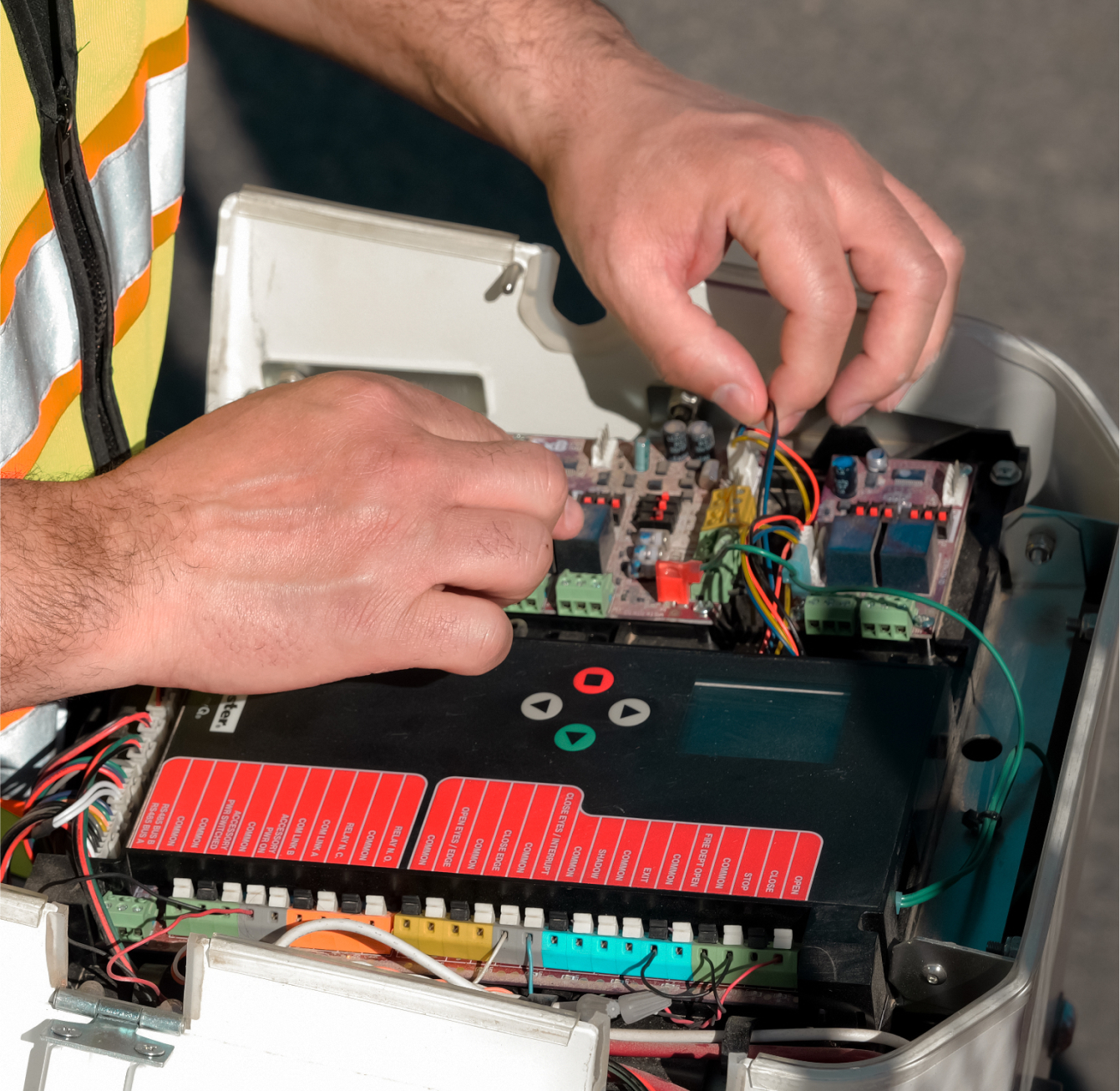

- Fast & Simple Installation: Change handing with two mechanical adjustments. Five auxiliary relays allow fast loop connection. Modular arms assemble quickly in the field.
- Installation and Usage Support: Extensive content library of clear instructions and videos guide installation/maintenance.
- Key Metrics at Your Fingertips: On-board counters validate crucial data such as vend count, vehicle count, and total.
Standalone or Integrated Control
Whether you need a simple, independent gate operator or a fully integrated system, the TECHNA barrier gate offers the flexibility to work alone or as part of a LiftMaster myQ solution (Facilities or Enterprise).

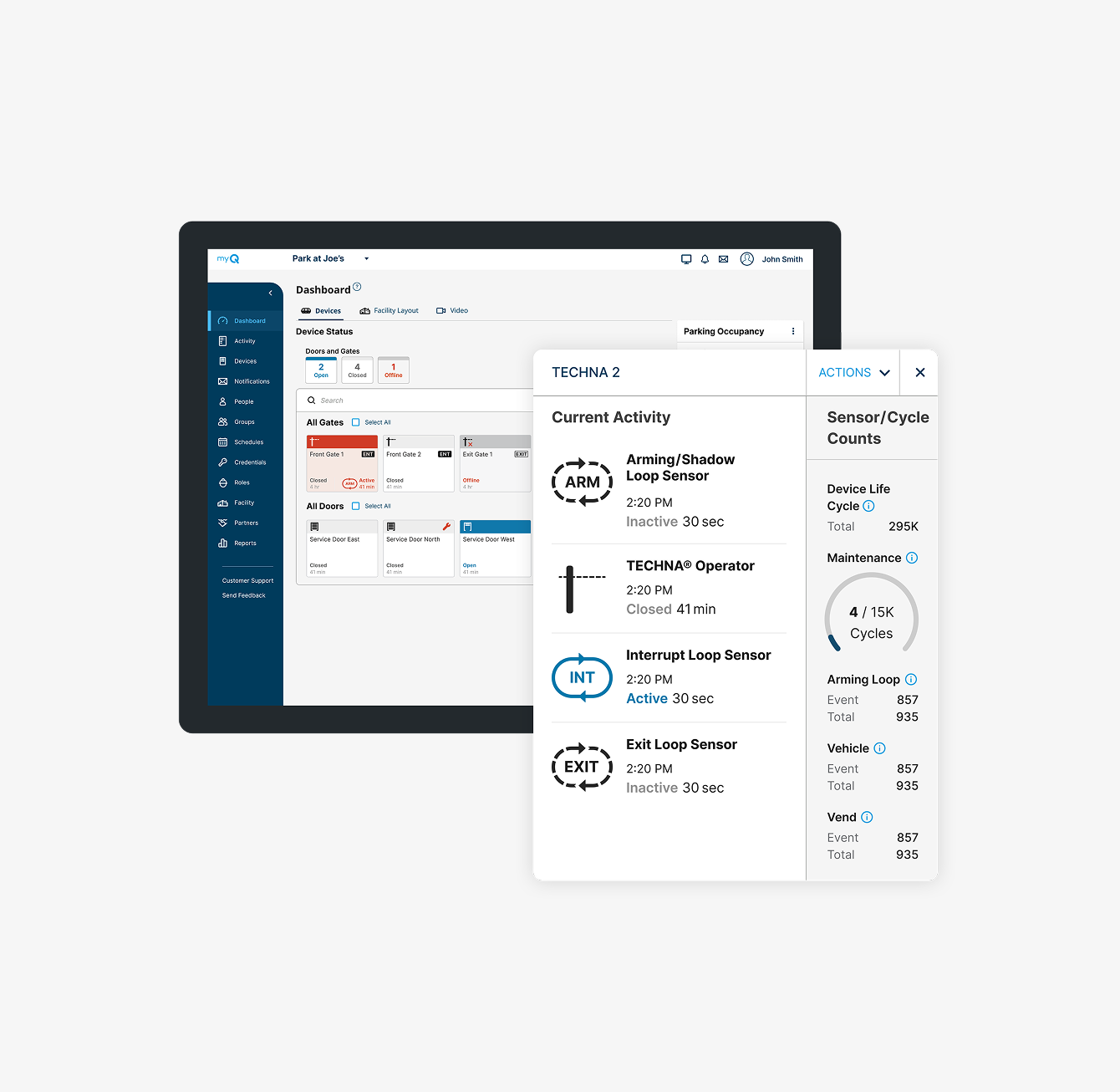

myQ Software (SaaS)
The myQ Facility Parking SaaS Platform integrates with TECHNA barrier gate operators to provide real-time visualization of occupancy and activity, enabling optimized utilization, enhanced enforcement capabilities, and limited time required on-site.
Specifications
Battery Backup
Standard 2 x 12V 7Ah batteries, Optional 2 x 12V 33Ah batteries available
myQ Compatibility
Works with myQ, myQ Facility, or myQ Enterprise
Power
120Vac/230 Vac 1 PH
Wi-Fi
Yes
Speed/Per Second
1.9s Open/Close time
Radio Receiver
LiftMaster Security+ 2.0 , 3-channel receiver up to 64 remote controls (unlimited remotes with 811MX/813MX)
Motor Type
24V DC Motor Drive
Soft Start/Stop
Yes
Warranty
2 Years
Programmable Relays
5 relays, One main board and 4 on the auxiliary boards
Local & Remote Diagnostics
Local log of 50 events correlated to cycle number, unlimited if connected to myQ Facility
Rated Duty Cycle
Continuous Duty
