TECHNA DC Commercial Barrier Gate operator

CBG24DC

  • Highly Visible Design: Programmable LEDs for the tower and arm to increase visibility and reduce strikes.
  • Simplified Control Board: Menu-based display and tool-less wiring with color-coded terminals to streamline installation.
  • Flexible Arm Bracket: Breakaway or pivot attachments designed to minimize damage in the case of an arm strike.
  • User-Friendly Arm Design: Engineered for effortless transport, assembly, and storage.
  • Continuous Duty: Operate uninterrupted with an ultra-fast, brushless, DC motor that lifts the arm in less than two seconds.
  • Arm Direction Reversal: Reverse the direction of the arm with a simple (3 bolts) mechanical adjustment.
  • Seamless Integrations: Smoothly connect other systems with plug-and-play functionality and full compatibility with existing LiftMaster accessories.
  • Smart Connectivity Powered by myQ: Built-in radio-receiver/Wi-Fi enables advanced diagnostics and control via integration with the myQ platform (myQ Facility & Community) for a seamless and effortless experience.
Faster. Simpler. Smarter.
Techna

Faster. Simpler. Smarter

Simple

Simple

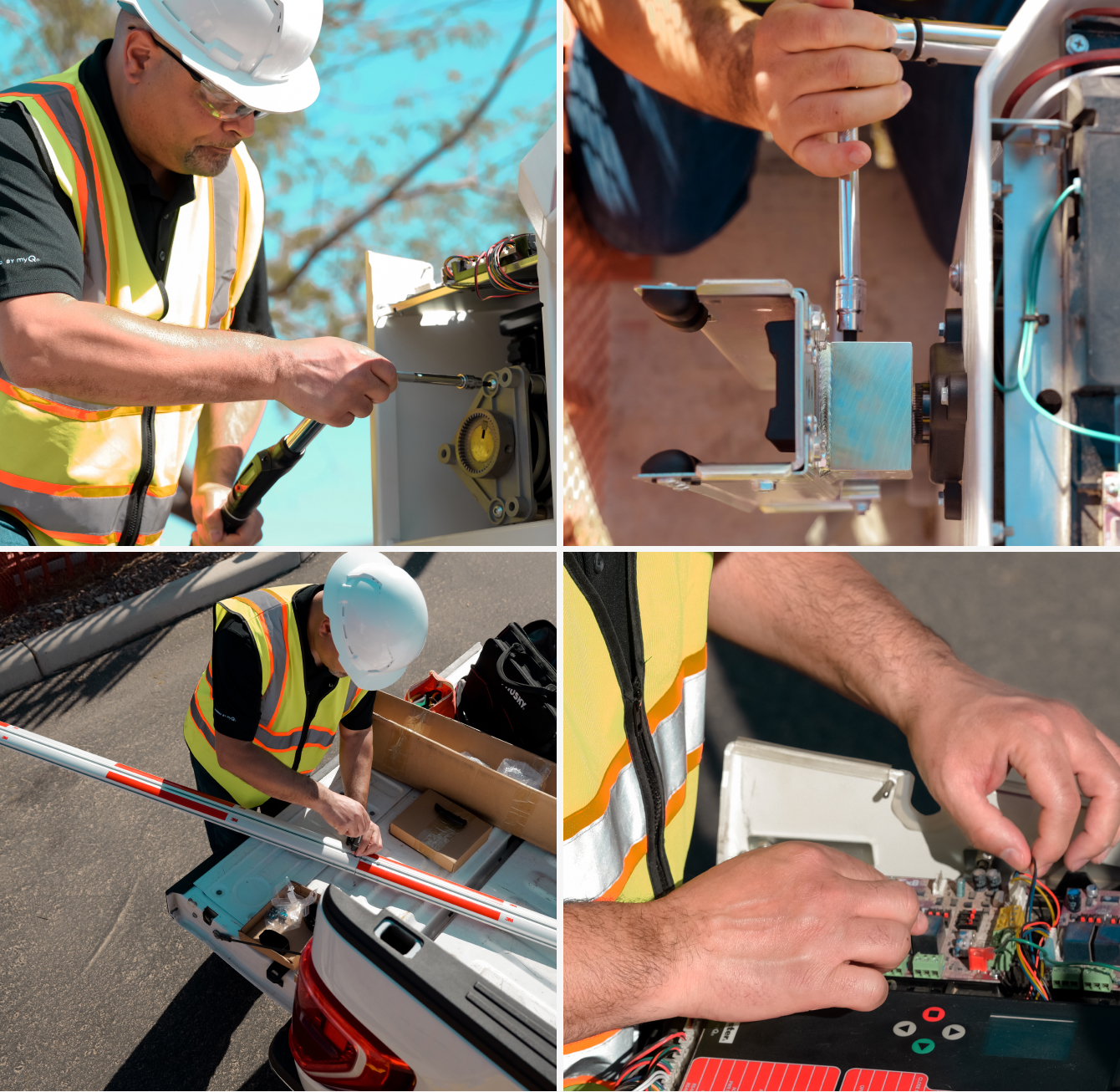

Techna is designed for installers, prioritizing simplicity and ease of use. Setup is streamlined with detailed video guides, quick-start resources and an intuitive system. Programming, setup and installation are all straightforward. Innovative spring technology simplifies arm setup, making adjustments mechanical and intuitive, eliminating guesswork.

Inteligente

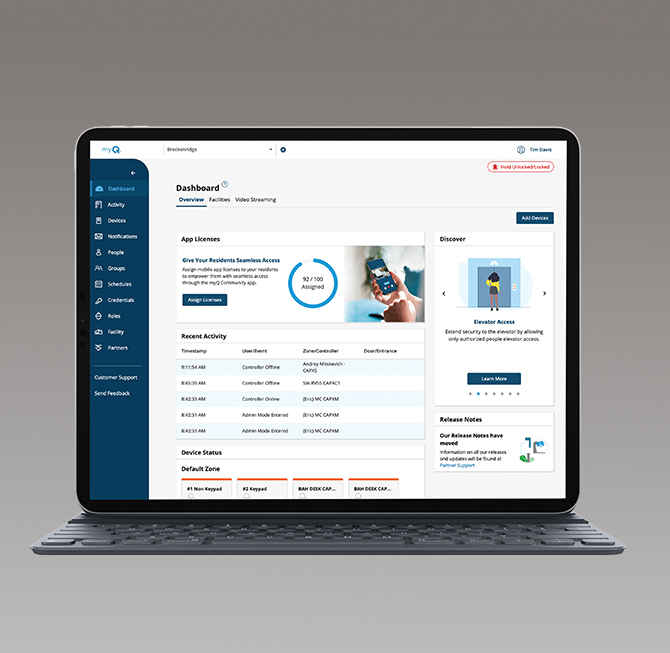

TECHNA offers smart connectivity via Wi-Fi and Ethernet. On-site troubleshooting is simplified with diagnostic error codes displayed on the unit's embedded LCD screen. myQ connectivity provides real-time alerts to property managers and service contractors for events such as barrier arm impacts and other operational issues.

Inteligente
Built to Last

Built to Last

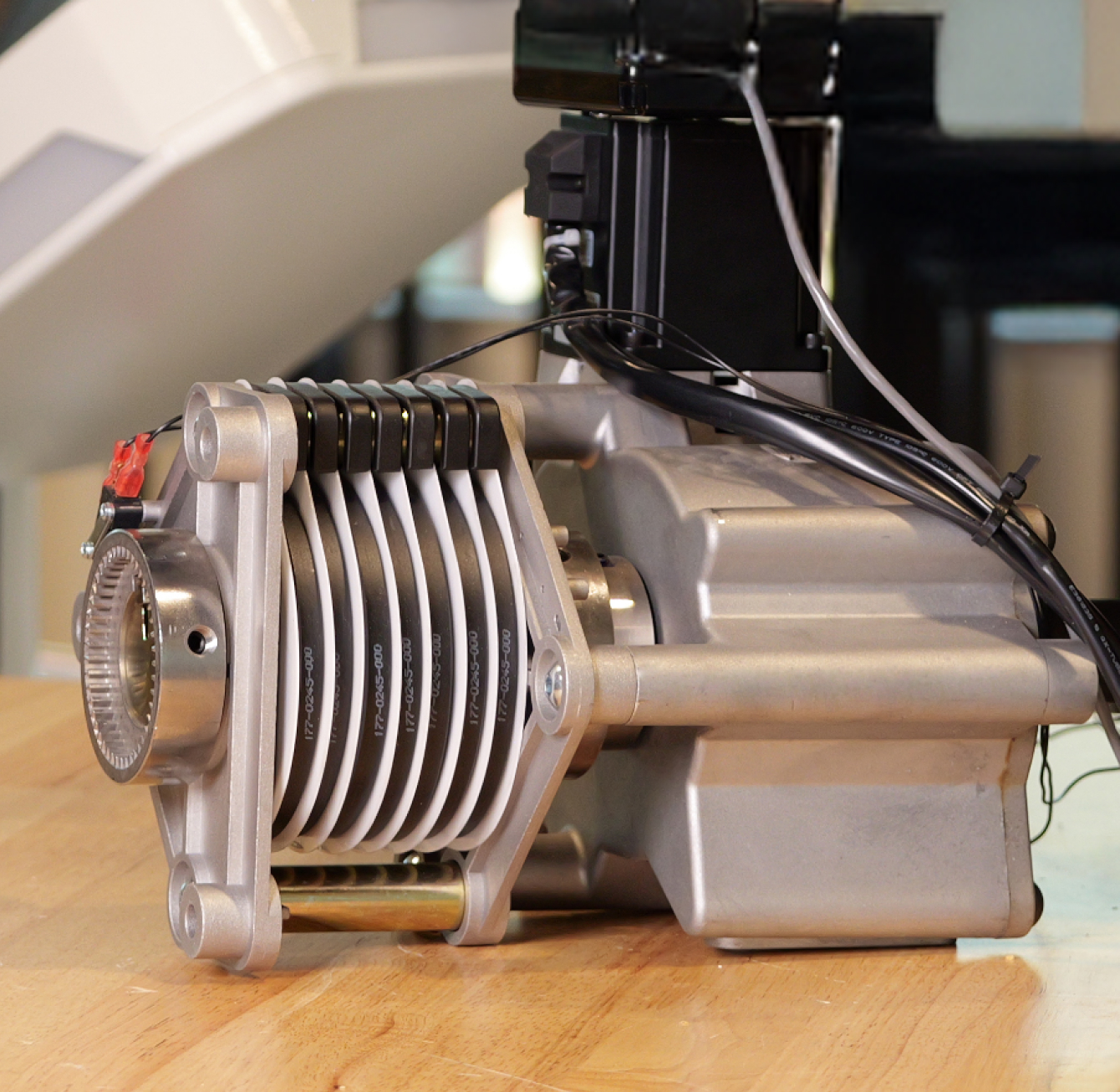

TECHNA is built for durability, utilizing DC brushless motor technology and direct drive, eliminating mechanical braking points. Its IP65 rating and specially designed spring mechanism ensure an extended duty cycle.

Enhanced Vehicle Protection

Enhanced Vehicle Protection

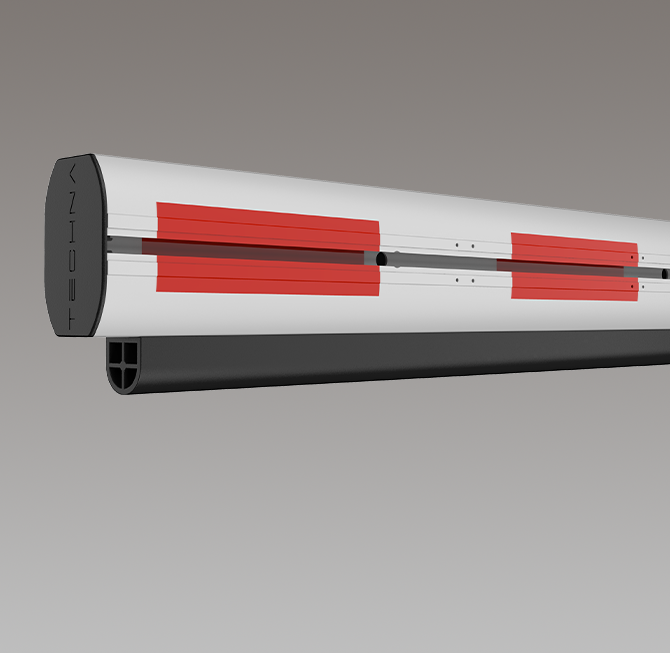

Specifically designed for the TECHNA Barrier arm, this 14' roll of extruded foam provides an extra layer of defense against vehicle scratches.

Standalone or Integrated Control

Whether you need a simple, independent gate operator or a fully integrated system, the TECHNA barrier gate offers the flexibility to work alone or as part of a LiftMaster myQ solution (Facilities or Enterprise).

Especificaciones

Compatibilidad myQ
Funciona con myQ, myQ Facility o myQ Enterprise
Potencia
120Vac/230 Vac 1 PH
Wi-Fi
Respaldo de batería
Standard 2 x 12V 7Ah batteries, Optional 2 x 12V 33Ah batteries available
Velocidad por segundo
2.5s Open/Close time
Receptor de radio
LiftMaster Security+ 2.0 , 3-channel receiver up to 64 remote controls (unlimited remotes with 811MX/813MX)
Tipo de motor
Transmisión del motor 24VDC
Arranque y parada suaves
Garantía
2 años
Programmable Relays
5 relays, One main board and 4 on the auxiliary boards
Local & Remote Diagnostics
Local log of 50 events correlated to cycle number, unlimited if connected to myQ Facility.
Ciclo de servicio
Servicio continuo
